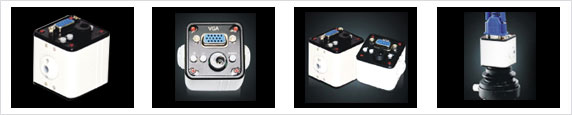

High Resolution Digital Camera
 1028*1024 deliver highest quality image
Up to 15 frame per second
VGA output, direct connect to LCD display without PC
Manual White balance control, auto gain control and color control
1/3" CMOS Sensor
DC5V input
Cross Cursor (on/off)
High Resolution Analog Camera
Multi Functions
BNC Connector
Super high sensitivity
Minimum illumination
Auto White balance
Up to 30 frame per second
MODEL |
VS-902HC(Color) |
VS-912HC(Color) |
VS-902H(Mono) |
| Image Sensor Device |
|
1/3"SONY CCD |
|
| Effective Pixels |
|
752(H)X582(V) |
|
| System of Signal |
NTSC/PAL |
NTSC/PAL |
CCIR/EIA |
| Horizontal Resolution |
480 Lines |
520 Lines |
600 Lines |
| Minimum illumination |
0.5lux at F1.2 |
0.1lux at F1.2 |
0. 001lux at F1.2 |
| S/N Ratio |
48dB |
52dB |
52dB |
| Electronic Shutter |
|
1/50-1/100,000/sec |
|
| Electronics Shutter Control |
|
On/Off |
|
| Automatic Gain Control |
|
On/Off |
|
| Backlight Compensation |
|
On/Off |
|
| White Balance |
|
Auto |
|
| Lens mounting |
|
C/CS |
|
| iris lens control |
|
VIDEO/DC |
|
| Video output |
|
1.0Vp-p,75Ω |
|
| Power Supply |
|
DC12V |
|
|
|
