USB
LE | RE | SE

LE

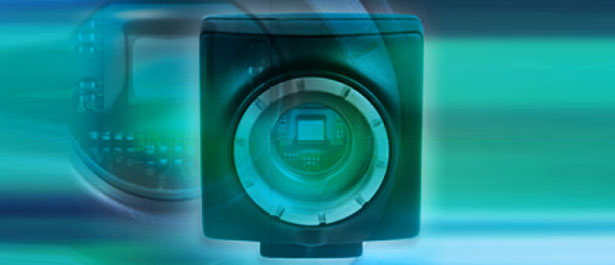

The uEye® LE series

The uEye®LE stands for a family of extremely compact, cost efficient cameras for professional use. The LE models are designed for a wide range of applications. Through the use of the widespread USB technology the cameras can be interfaced with a vast variety of systems without problems.

Modern sensorics

uEye®LE cameras feature a range of high-performance CMOS sensors. The product range includes several models with Wide VGA resolution and a maximum of 87 full frames per second, as well as a high-resolution 5-megapixel camera.

Features at a glance

  • Universal use with PC, notebook, IPC and embedded systems with USB 2.0
  • Monochrome and color models
  • Resolutions from WVGA (752 x 480) to 5 megapixels (2560 x 1920)
  • High-quality CMOS sensors
  • Up to 87 full frames/sec., over 1000 frames/sec. with AOI
  • One universal driver and one SDK for the entire camera family
  • Camera control and power supply via the USB bus
  • Back focus adjustment
  • Models with CS-mount and S-mount lens connection, C-mount via adapter
  • Powerful SDK for Windows 2000/XP/Vista and Linux
  • DirectDraw support, ActiveX, TWAIN and Direct Show (WDM) drivers
  • Interfaces for popular image processing software available: e.g. ActivVisionTools, Common Vision Blox, HALCON, LabView, Neurocheck, etc.
  • Boardlevel models with digital in and outs (TTL compatible)

uEyeLE - Extremely compact cameras with an attractive price/performance ratio for professional use in visualisation and image processing.

Table listing of the uEye®LE camera family:

uEyeLE USB2.0 cameras - WVGA with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Housing
 UI-1225LE-M 752x480 1/3" CMOS Global Shutter 87 Monochrome 8 Bit Housing Model, CS Mount
 UI-1225LE-C 752x480 1/3" CMOS Global Shutter 87 Colour Bayer Pattern 8 Bit Housing model, CS Mount
 UI-1226LE-M 752x480 1/3" CMOS Global Shutter 87 Monochrome 8 Bit S-Mount, M12 Model
 UI-1226LE-C 752x480 1/3" CMOS Global Shutter 87 Colour Bayer Pattern 8 Bit S-Mount, M12 Model
 UI-1228LE-M 752x480 1/3" CMOS Global Shutter 87 Monochrome 8 Bit Boardlevel Model
 UI-1228LE-C 752x480 1/3" CMOS Global Shutter 87 Colour Bayer Pattern 8 Bit Boardlevel Model

uEyeLE USB 2.0 cameras - SXGA (1,3 Megapixels)

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Housing
 UI-1545LE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit Housing Model, CS Mount
 UI-1546LE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit S-Mount, M12 Model
 UI-1547LE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit S-Mount, M14 Model
 UI-1548LE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit Boardlevel Model
 UI-1645LE-C 1280x1024 1/3" CMOS Rolling Shutter 26 Colour Bayer Pattern 8 Bit Housing Model, CS Mount
 UI-1646LE-C 1280x1024 1/3" CMOS Rolling Shutter 26 Colour Bayer Pattern 8 Bit S-Mount, M12 Model
 UI-1648LE-C 1280x1024 1/3" CMOS Rolling Shutter 26 Colour Bayer Pattern 8 Bit Boardlevel Model

uEyeLE USB 2.0 cameras - UXGA (2,0 Megapixels)

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Housing
 UI-1555LE-C 1600x1200 1/3" CMOS Rolling Shutter 15 Colour Bayer Pattern 8 Bit Housing Model, CS Mount
 UI-1556LE-C 1600x1200 1/3" CMOS Rolling Shutter 15 Colour Bayer Pattern 8 Bit S-Mount, M12 Model
 UI-1558LE-C 1600x1200 1/3" CMOS Rolling Shutter 15 Colour Bayer Pattern 8 Bit Boardlevel Model

uEyeLE USB 2.0 cameras - SUXGA (3,3 Megapixels)

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Housing
 UI-1465LE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit Housing Model, CS Mount
 UI-1466LE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit S-Mount, M12 Model
 UI-1467LE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit S-Mount, M14 Model
 UI-1468LE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit Boardlevel Model

uEyeLE USB 2.0 cameras - QSXGA (5 Megapixels)

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Housing
 UI-1485LE-M 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Monochrome 8 Bit Housing Model, CS Mount
 UI-1485LE-C 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Colour Bayer Pattern 8 Bit Housing Model, CS Mount
 UI-1486LE-M 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Monochrome 8 Bit S-Mount, M12 Model
 UI-1486LE-C 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Colour Bayer Pattern 8 Bit S-Mount, M12 Model
 UI-1487LE-M 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Monochrome 8 Bit S-Mount, M14 Model
 UI-1487LE-C 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Colour Bayer Pattern 8 Bit S-Mount, M14 Model
 UI-1488LE-M 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Monochrome 8 Bit Boardlevel Model
 UI-1488LE-C 2560x1920 1/2" CMOS Rolling/Global
Start Shutter		 6 Colour Bayer Pattern 8 Bit Boardlevel Model
Top
RE



The uEye® family

uEye® stands for a family of extremely compact, cost efficient cameras for professional use in industrial, non industrial and security technology. Through the use of the widespread USB technology, the cameras can be interfaced with a vast variety of systems without problems.

Modern sensorics

uEye® cameras are equipped with a range of high-quality CCD and CMOS sensors. The wide range of products includes several models with VGA or Wide VGA resolution and a maximum of 87 full frames per second, as well as highresolution megapixel cameras. Most models are available with color or Monochrome sensors.

Features at a glance

  • Universal use with PC, notebook, IPC and embedded systems with USB 2.0
  • Monochrome and color models
  • Resolutions from VGA (640 x 480) to 5 megapixels (2560 x 1920)
  • High-quality CCD and CMOS sensors
  • Memory models with 4 MB memory and USB 1.1 compatibility
  • Up to 87 full frames/sec., over 1000 frames/sec. with AOI
  • One universal driver and one SDK for the entire camera family
  • Camera control and power supply via the USB bus
  • Universal input, optically separated, suitable for triggering
  • Digital output, optically separated, suitable for flash control
  • Ultra compact housing with C-mount lens connector
  • Powerful SDK for Windows 2000/XP/Vista and Linux
  • DirectDraw support, ActiveX, TWAIN and Direct Show (WDM) drivers
  • Interfaces for popular image processing software available: e.g. Common Vision Blox, HALCON, LabView, Neurocheck, etc.

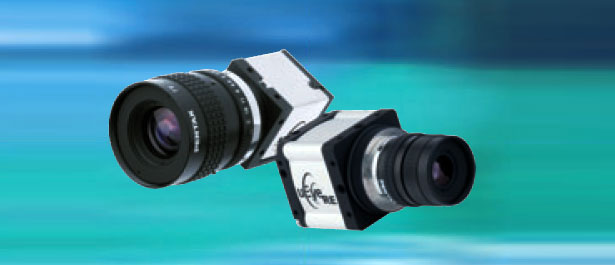

uEyeRE - Imaging Everywhere



The design of the uEye RE camera quits with consumer standards and fulfils in combination with the uEyeRE lens tubes the protection classes IP65 and IP67:

uEye RE USB2.0 cameras - VGA with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1465LE-C 640x480 1/3" CMOS Rolling Shutter 35 Monochrome 8 Bit async.
 UI-1410RE-C 640x480 1/3" CMOS Rolling Shutter 35 Colour Bayer Pattern 8 Bit async.
 UI-2210RE-M 640x480 1/2" CCD 75 Monochrome 8 Bit async.
 UI-2210RE-C 640x480 1/2" CCD 75 Colour Bayer Pattern 8 Bit async.
 UI-2310RE-M 640x480 1/4" CCD 75 Monochrome 8 Bit async.
 UI-2310RE-C 640x480 1/4" CCD 75 Colour Bayer Pattern 8 Bit async.
 UI-2410RE-M 640x480 1/3" CCD 75 Monochrome 8 Bit async.
 UI-2410RE-C 640x480 1/3" CCD 75 Colour Bayer Pattern 8 Bit async.

uEye RE USB2.0 cameras - WVGA and CCIR/PAL with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1220RE-M 752x480 1/3" CMOS Global Shutter 87 Monochrome 8 Bit async.
 UI-1220RE-C 752x480 1/3" CMOS Global Shutter 87 Colour Bayer Pattern 8 Bit async.
 UI-2220RE-M 768x576 1/2" CCD 52 Monochrome 8 Bit async.
 UI-2220RE-C 768x576 1/2" CCD 52 Colour Bayer Pattern 8 Bit async.

uEye RE USB2.0 cameras - XGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-2230RE-M 1024x768 1/3" CCD 30 Monochrome 8 Bit async.
 UI-2230RE-C 1024x768 1/3" CCD 30 Colour Bayer Pattern 8 Bit async.

uEye RE USB 2.0 cameras - SXGA (1,3 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1540RE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit async.
 UI-1640RE-C 1280x1024 1/3" CMOS Rolling Shutter 25 Colour Bayer Pattern 8 Bit async.
 UI-2240RE-M 1280x1024 1/2" CCD 15 Monochrome 8 Bit async.
 UI-2240RE-C 1280x1024 1/2" CCD 15 Colour Bayer Pattern 8 Bit async.
 UI-2340RE-M 1360x1024 1/2" CCD 17 Monochrome 8 Bit async.
 UI-2340RE-C 1360x1024 1/2" CCD 17 Colour Bayer Pattern 8 Bit async.

uEye RE USB 2.0 cameras - UXGA (2,0 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1450RE-C 1600x1200 1/2" CMOS Rolling Shutter 18 Colour Bayer Pattern 8 Bit async.
 UI-1550RE-C 1600x1200 1/3" CMOS Rolling Shutter 17 Colour Bayer Pattern 8 Bit async.
 UI-2250RE-M  1600x1200 1/1.8" CCD 12 Monochrome 8 Bit async.
 UI-2250RE-C 1600x1200 1/1.8" CCD 12 Colour Bayer Pattern 8 Bit async.

uEye RE USB 2.0 cameras - SUXGA (3,3 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1460RE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit async.

uEye RE USB 2.0 cameras - QSXGA (5 Megapixel) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1480RE-M 2560x1920 1/2" CMOS Rolling/Global Start Shutter 6 Monochrome 8 Bit async.
 UI-1480RE-C 2560x1920 1/2" CMOS Rolling/Global Start Shutter 6 Colour Bayer Pattern 8 Bit async.
Top
SE

Your imagination is our challenge



Table listing of the uEye® SE camera family:

uEye SE USB2.0 cameras - VGA with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1410SE-M 640x480 1/3" CMOS Rolling Shutter 35 Monochrome 8 Bit async.
 UI-1410SE-C 640x480 1/3" CMOS Rolling Shutter 35 Colour Bayer Pattern 8 Bit async.
 UI-2210SE-M 640x480 1/2" CCD 75 Monochrome 8 Bit async.
 UI-2210SE-C 640x480 1/2" CCD 75 Colour Bayer Pattern 8 Bit async.
 UI-2310SE-M 640x480 1/4" CCD 75 Monochrome 8 Bit async.
 UI-2310SE-C 640x480 1/4" CCD 75 Colour Bayer Pattern 8 Bit async.
 UI-2410SE-M 640x480 1/3" CCD 75 Monochrome 8 Bit async.
 UI-2410SE-C 640x480 1/3" CCD 75 Colour Bayer Pattern 8 Bit async.

uEye SE USB2.0 cameras - WVGA and CCIR/PAL with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1220SE-M 752x480 1/3" CMOS Global Shutter 87 Monochrome 8 Bit async.
 UI-1220SE-C 752x480 1/3" CMOS Global Shutter 87 Colour Bayer Pattern 8 Bit async.
 UI-2220SE-M 768x576 1/2" CCD 52 Monochrome 8 Bit async.
 UI-2220SE-C 768x576 1/2" CCD 52 Colour Bayer Pattern 8 Bit async.

uEye SE USB2.0 cameras - XGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-2230SE-M 1024x768 1/3" CCD 30 Monochrome 8 Bit async.
 UI-2230SE-C 1024x768 1/3" CCD 30 Colour Bayer Pattern 8 Bit async.

uEye SE USB 2.0 cameras - SXGA (1,3 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1540SE-M 1280x1024 1/2" CMOS Rolling Shutter 25 Monochrome 8 Bit async.
 UI-1640SE-C 1280x1024 1/3" CMOS Rolling Shutter 25 Colour Bayer Pattern 8 Bit async.
 UI-2240SE-M 1280x1024 1/2" CCD 15 Monochrome 8 Bit async.
 UI-2240SE-C 1280x1024 1/2" CCD 15 Colour Bayer Pattern 8 Bit async.
 UI-2340SE-M 1360x1024 1/2" CCD 17 Monochrome 8 Bit async.
 UI-2340SE-C 1360x1024 1/2" CCD 17 Colour Bayer Pattern 8 Bit async.

uEye SE USB 2.0 cameras - UXGA (2,0 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1450SE-C 1600x1200 1/2" CMOS Rolling Shutter 18 Colour Bayer Pattern 8 Bit async.
 UI-1550SE-C 1600x1200 1/3" CMOS Rolling Shutter 17 Colour Bayer Pattern 8 Bit async.
 UI-2250SE-M 1600x1200 1/1.8" CCD 12 Monochrome 8 Bit async.
 UI-2250SE-C 1600x1200 1/1.8" CCD 12 Colour Bayer Pattern 8 Bit async.

uEye SE USB 2.0 cameras - SUXGA (3,3 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1460SE-C 2048x1536 1/2" CMOS Rolling Shutter 11 Colour Bayer Pattern 8 Bit async.

uEye SE USB 2.0 cameras - QSXGA (5 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Colour
depth		 Trigger
 UI-1480SE-M 2560x1920 1/2" CMOS Rolling/Global Start Shutter 6 Monochrome 8 Bit async.
 UI-1480SE-C 2560x1920 1/2" CMOS Rolling/Global Start Shutter 6 Colour Bayer Pattern 8 Bit async.
Top
