The Gigabit Ethernet uEye® Series

The GigE uEye® series is not only the logical continuation of the uEye® USB range, but takes it to a higher level with a rich set of additional features. The 12 or 36 bit color depth, the significantly enhanced I/O functionality and the housing design open up new possibilities and introduce a new class of performance. The new interface provides additional advantages: These range from higher frame rates and a higher bandwidth for multi-camera applications to uncompromising cable lengths and proven, highly available periphery, depending on the individual sensors.

GigE Plug and Play

Our new Camera Manager enables configuring and controlling the GigE uEye® as quickly and as simply as you are familiar with. The GigE and the USB uEye® cameras also employ the same SDK. Using both technologies simultaneously is just as easy to do as migrating from USB to Ethernet, and vice versa. For users who want an even more universal solution, we also offer the GenICamTM* interface for all uEye® cameras. It's so easy!

Features at a glance

  • Universal use with PC, notebook, IPC and embedded systems with Gigabit Ethernet interface
  • Resolutions from VGA (640x480) to 5 megapixels (2560x1920)
  • High-quality CCD and CMOS sensors
  • Color depth up to 12/36 bits *
  • Up to 100 full frames/sec., over 1000 frames/sec. with AOI
  • One universal driver and one SDK for all uEye® camera models
  • Firmware upload philosophy ensures identical, up-to-date versions in multi-camera environments
  • Multi I/O interface: 1 trigger, 1 digital out, 2 GPIOs and 1 serial RS232 port
  • 6 - 24 V power supply
  • Compact, symmetrical housing with C-mount lens connector and adjustable mounting dimensions
  • Standard interfaces such as Direct Show (WDM) and interfaces for popular image processing software available: e.g. Common Vision Blox, HALCON, LabView and NeuroCheck
  • GenICamTM Interface in preparation *

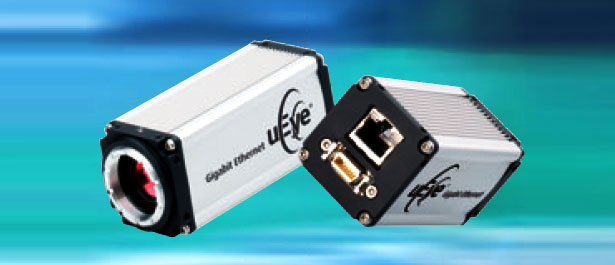

Gigabit Ethernet uEye® HE - A new performance class

Table listing of the Gigabit Ethernet uEye® HE camera family:

Gigabit Ethernet uEye HE cameras - VGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-6210HE-M/
 UI-6219HE-M(90°) 		640x480 1/2" CCD 75 Monochrome async.
 UI-6210HE-C
 UI-6219HE-C(90°) 		640x480 1/2" CCD 75 Colour Bayer Pattern async.
 UI-6410HE-M
 UI-6419HE-M(90°) 		640x480 1/3" CCD 75 Monochrome async.
 UI-6410HE-C
 UI-6419HE-C(90°) 		640x480 1/3" CCD 75 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - WVGA and CCIR/PAL with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5220HE-M
 UI-5229HE-M(90°) 		752x480 1/3" CMOS Global Shutter 100 Monochrome async.
 UI-5220HE-C
 UI-5229HE-C(90°) 		752x480 1/3" CMOS Global Shutter 100 Colour Bayer Pattern async.
 UI-6220HE-M
 UI-6229HE-M(90°) 		768x576 1/2" CCD 52 Monochrome async.
 UI-6220HE-C
 UI-6229-C(90°) 		768x576 1/2" CCD 52 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - XGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-6230HE-M
 UI-6239HE-M(90°) 		1024x768 1/3" CCD 30 Monochrome async.
 UI-6230HE-C
 UI-6239HE-C(90°) 		1024x768 1/3" CCD 30 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - SXGA (1,3 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5540HE-M
 UI-5549HE-M(90°) 		1280x1024 1/2" CMOS Rolling Shutter 35 Monochrome async.
 UI-5640HE-C
 UI-5649HE-C(90°) 		1280x1024 1/3" CMOS Rolling Shutter 25 Colour Bayer Pattern async.
 UI-6240HE-M
 UI-6249HE-M(90°) 		1280x1024 1/2" CCD 15 Monochrome async.
 UI-6240HE-C
 UI-6249HE-C(90°) 		1280x1024 1/2" CCD 15 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - UXGA (2,0 Megapixels) with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5550HE-C
 UI-5559HE-C(90°) 		1600x1200 1/3" CMOS Rolling Shutter 25 Colour Bayer Pattern async.
 UI-6250HE-M
 UI-6259HE-M(90°) 		1600x1200 1/1.8" CCD 12 Monochrome async.
 UI-6250HE-C
 UI-6259HE-C(90°) 		1600x1200 1/1.8" CCD 12 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - SUXGA (3,2 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5460HE-C
 UI-5469HE-C(90°) 		2048x1536 1/2" CMOS Rolling Shutter 15 Colour Bayer Pattern async.

Gigabit Ethernet uEye HE cameras - QSXGA (5 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5480HE-M
 UI-5489HE-M(90°) 		2560x1920 1/2" CMOS
Rolling/Global
Start Shutter		 12 Monochrome async.
 UI-5480HE-C
 UI-5489HE-C(90°) 		2560x1920 1/2" CMOS Rolling/Global Start Shutter 12 Colour Bayer Pattern


Top
SE

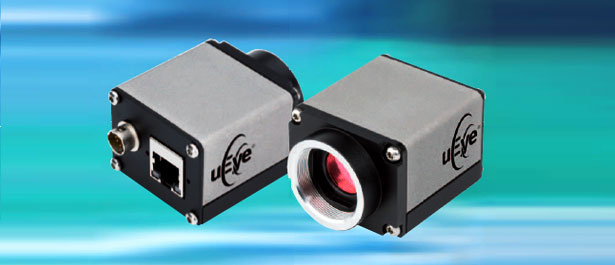

The new compact solution

The successful Gigabit Ethernet uEye® range introduces a small but perfectly formed newcomer: the GigE uEye® SE, a camera specially tailored to the needs of plant and machinery manufacturers. Compact design was at the top of the specification list. Furthermore the series is equipped with the same CCD and CMOS sensors as the established model. Resolutions range from VGA to 2 megapixels with CCD, and from WVGA to 5 Megapixels with CMOS. The new models are not only driver compatible with all cameras of the uEye range and across all interfaces, but also use the same SDK and 3rd party interfaces.

GigE Plug and Play

The GigE uEye® SE provides the same plug-and-play ease for which IDS cameras are widely appreciated: Even Gigabit Ethernet models are configured automatically and are ready for use immediately. Our firmware upload philosophy of course also applies to the new product line and automatically ensures that all the cameras of a system use the same version. To update the firmware, all you need to do is update the drivers once on the PC.

Features at a glance

  • Universal use with PC, notebook, IPC and embedded systems with Gigabit Ethernet interface
  • Resolutions from VGA (640x480) to 5 Megapixels (2560x1920)
  • High-quality CCD and CMOS sensors
  • Up to 90 full frames/sec., over 500 frames/sec. with AOI
  • I/O: 1 trigger, 1 digital out optically isolated
  • Compact housing with C-mount lens connector
  • One universal driver and one SDK for all uEye® camera models
  • Firmware upload philosophy ensures identical, up-to-date versions in multi-camera environments
  • Standard interfaces such as Direct Show (WDM) and interfaces for popular image processing software available: e.g. Common Vision Blox, HALCON, LabView and NeuroCheck
  • GenICamTM Interface

GigE uEye® SE - The new compact class

Table listing of the GigE uEye® SE camera family:

GigE uEye SE cameras - VGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-6210SE-M 640x480 1/2" CCD 75 Monochrome async.
 UI-6210SE-C 640x480 1/2" CCD 75 Colour Bayer Pattern async.
 UI-6410SE-M 640x480 1/3" CCD 75 Monochrome async.
 UI-6410SE-C 640x480 1/3" CCD 75 Colour Bayer Pattern async.

GigE uEye SE cameras - WVGA and CCIR/PAL with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5220SE-M 752x480 1/3" CMOS Global Shutter 91,5 Monochrome async.
 UI-5220SE-C 752x480 1/3" CMOS Global Shutter 91,5 Colour Bayer Pattern async.
 UI-6220SE-M 768x576 1/2" CCD 52 Monochrome async.
 UI-6220SE-C 768x576 1/2" CCD 52 Colour Bayer Pattern async.

GigE uEye SE cameras - XGA with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-6230SE-M 1024x768 1/3" CCD 35 Monochrome async.
 UI-6230SE-C 1024x768 1/3" CCD 35 Colour Bayer Pattern async.

GigE uEye SE cameras - SXGA (1,3 Megapixels) with CMOS and CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5540SE-M 1280x1024 1/2" CMOS Rolling Shutter 26,7 Monochrome async.
 UI-5640SE-C 1280x1024 1/3" CMOS Rolling Shutter 25 Colour Bayer Pattern async.
 UI-6240SE-M 1280x1024 1/2" CCD 15 Monochrome async.
 UI-6240SE-C 1280x1024 1/2" CCD 15 Colour Bayer Pattern async.

GigE uEye SE cameras - UXGA (2,0 Megapixels) with CCD sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5550SE-C 1600x1200 1/3" CMOS Rolling Shutter 19 Colour Bayer Pattern async.
 UI-6250SE-M 1600x1200 1/1.8" CCD 12 Monochrome async.
 UI-6250SE-C 1600x1200 1/1.8" CCD 12 Colour Bayer Pattern async.

GigE uEye SE cameras - SUXGA (3,2 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
 UI-5460SE-C 2048x1536 1/2" CMOS Rolling Shutter 12 Colour Bayer Pattern async.

GigE uEye SE cameras - QSXGA (5 Megapixels) with CMOS sensors

 Model Resolution Sensor
format		 Sensor
type		 FPS Colour Trigger
UI-5480SE-M 2560x1920 1/2" CMOS Rolling/Global Start Shutter 7 Monochrome async.
UI-5480SE-C 2560x1920 1/2" CMOS Rolling/Global Start Shutter 7 Colour Bayer Pattern async.
